How To Wire A Double Light Switch To Two Lights

3 Answers

<ol class="X5LH0c"><li class="TrT0Xe">Get a 2-gang box to replace your existing 1-gang box.</li><li class="TrT0Xe">Get a new switch.</li><li class="TrT0Xe">Remove your existing box and install the 2-gang box in its place.</li><li class="TrT0Xe">Run your supply hot wire to both switches.</li><li class="TrT0Xe">Connect the light/fan hot wire to one switch and the exterior light to the other.</li><li class="TrT0Xe">Join all neutrals and ground wires.</li></ol>

Can you run two lights off the same switch?

The answer is yes; one switch can turn on multiple lights. You can use two ways to make your switch control multiple lights. The most common way is to daisy-chain the light fixtures through connecting them with each other and hooking the first fixture to the switch.

How do you wire two light switches to the same light?

We therefore take the live wire and divert this into the common terminal or switch one we run

What happens if you wire a light switch wrong?

If a light switch is wired up wrongly, a short circuit may takes place if you give phase and neutral to the switch terminals. Always connect neutral wire to the one terminal of the light and phase to the one terminal of the switch and off wire to the other terminal of the switch to the light other terminal.

What is a double light switch called?

Double pole light switches, also known as a four-way switch, are two single pole switches put together. Two separate circuits are controlled by one switch. This is typically used to control a circuit from multiple locations in a series of three switches on one circuit.

Can I pull power from a light switch?

You can pull power from a switch box—sometimes Switch boxes can sometimes be used as a power source for a new outlet, but only if the box is large enough and has neutral and ground wires running through it.

How do you wire daisy-chain lights?

To this light. But if you notice. It's not cut. It's it's just the main wire. So what you're gonna

What is the difference between a single pole and a double pole light switch?

A pole refers to the number of separate circuits a switch can control, a single pole switch can operate one circuit whereas a double pole switch can control two circuits. A throw refers to how many positions can be activated by a switch.

How many lights can you put on one switch?

There is no limit to the number of lights on a circuit. The load of the lights determines how many you can have. A regular 15A circuit can have up to 1400W of lights connected, or one 1400W light or 14 100W light bulbs. Most homes allow for 23 to 40 60-watt bulbs or 280 to 480 5-watt LEDs.

Can you daisy-chain light fixtures?

Multiple light fixtures operated by a single switch can be most easily wired through a process known as "daisy chaining." This is a simple, serial wiring scheme that connects the wires of the light fixtures one to the next in a single circuit.

How many lights can you have on a 20 amp circuit?

Technically, you can install 13 outlets or lights on a 20-amp CB, but you can only put ten lights per circuit due to the 80% rule of maximum continuous load.

What does L1 and L2 mean on a light switch?

The other terminal is marked as L1 and is the output to the light fixture. When you're wiring decorative light switches such as chrome or stainless steel etc, you'll find that the switch will also have an L2 terminal which means it's a two way switch.

What is a traveler wire?

The black and red wires are "travelers" and are connected to the traveler screw terminals on the two switches. This provides two alternate pathways for hot current to flow between the switches—this is what allows the switches to turn the lights on and off in a flexible manner.

How does a double pole light switch work?

A double pole single throw switch controls two circuits (poles) and has 2 states an “on” (closed) state and an “off” (open) state. A double pole single throw has four terminals in total, two inputs and two outputs which are all controlled by the same switch.

Can wiring a light switch wrong cause a fire?

Wiring a smart light switch wrong can result in the switch not working correctly. If the wiring creates a short circuit, it can lead to damage to the switch and/or a burnt-out fuse. Errors can also lead to electric shock, fire, and a violation of local wiring codes.

How can you tell if a light switch is wired backwards?

If either wire at the light fixture is still hot then the switch is wired incorrectly. If one of the wires is still hot at the light fixture with the switch in the off position, then you most likely have the light switch on the neutral wire.

Does it matter where the hot wire goes on a light switch?

Does a hot wire go on top or bottom of a light switch? It doesn't matter. Switches simply break (off), or complete (on), circuits so that current can flow or not.

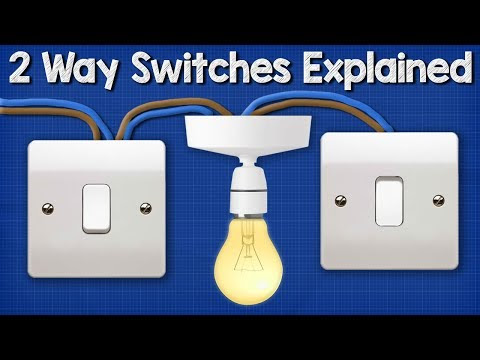

What is the difference between a 2 way and 3 way light switch?

Much like the two-way switch, a three-way switch turns a light on or off. However, there is a crucial difference. The three-way switch is used in conjunction with another three-way switch. Each one of them has the power to interrupt the electrical flow and turn the light off from a different part of the room.

Is a double pole switch the same as a 3 way switch?

A double-pole switch allows you to control two separate circuits using the same switch, while a three-way switch allows you to control a single circuit from two different locations. A double-pole three-way switch is able to integrate both of these functions into one.

Do both switches need to be 3 way?

The key ingredient is a special type of switch called a “three-way” switch. You'll need two of them, one to replace the existing switch and another for the new switch location. With these, you'll have the convenience of turning a light on and off from two spots.
