Most standard 120-volt household circuits in your home are (or should be) parallel circuits. Outlets, switches, and light fixtures are wired in such a way that the hot and neutral wires maintain a continuous circuit pathway independent from the individual devices that draw their power from the circuit.

What happens when a switch is connected in parallel?

When a switch is in the 'on' position it allows the electricity flow to enter the main electrical circuit and the circuit becomes a closed circuit. On the other hand,when a switch is in the 'off' position it blocks the electricity flow from entering the main electrical i and the circuit becomes an open circuit.

Are light switches wired in parallel?

The common household circuits used in electrical wiring installation are (and should be) in parallel. Mostly, switches, Outlet receptacles and light points etc are connected in parallel to maintain the power supply to other electrical devices and appliances through hot and neutral wire in case if one of them gets fail.

How do you make a parallel circuit with a switch?

Take a separate piece of wire and connect it to the negative terminal of the battery. Take the other end of the wire and connect it to the switch. Connect the switch to the first lightbulb. Using yet another piece of wire, connect it first to the switch, and then wind it around the right side of the first lightbulb.

Which is better parallel or series circuit?

A parallel circuit is better than a series circuit because in case of any failure only the appliance connecting the faulty pathway will stop working. All the other pathways of the circuit remain unaffected by the failure.

What happens when two switches are connected in series?

 When multiple switches are connected in series with each other, they all must be in the closed position for current to travel through the circuit, thereby energizing the load. Safety switches, for example, are always connected in series.  The current in a series circuit is the same at all points.

What is the main difference between parallel and series circuits?

In a series circuit, the same amount of current flows through all the components placed in it. On the other hand, in parallel circuits, the components are placed in parallel with each other due to which the circuit splits the current flow.

Does current flow when a switch is open?

A switch has two states Open or closed When a switch is open no current can flow through it. When a switch is closed current flows through it.

Does electricity flow with switch on?

When a switch is open, it creates a gap in the circuit and current will not flow. When it is closed, it completes the circuit, and current flows through it. Switches are used in parallel circuits to turn different parts of the circuit on and off.

Why are homes wired in parallel?

As a result of parallel combination, the equivalent resistance decreases, resulting in less energy consumption.

What are the advantages of using parallel circuits?

(i) In parallel combination each appliance gets the full voltage. (ii) If one appliance is switched on, others are not affected. (iii) The parallel circuit divides the current through the appliances. Each appliance gets proper current depending on its resistance.

When would you use a parallel circuit?

Parallel circuits keep the lights on in our homes and ensure that different appliances continue to work, even if other appliances are turned off. Parallel circuits are the standard circuits found in home electrical wiring and offer distinct advantages over other circuits.

Can you put two switches in series?

the point of two spst switches in series is that first one acts as a “master switch” so you can cut the power without turning off the breaker. You are then free to use the second switch for normal operation. In series the lamp shall be made ON only if all the switches are ON position…

How do you draw a parallel circuit?

And then we want to have an ammeter. In line with each of those to measure the current. Through each

What is an example of a series parallel circuit?

If a wire joins the battery to one bulb, to the next bulb, to the next bulb, to the next bulb, then back to the battery in one continuous loop, the bulbs are said to be in series. If each bulb is wired to the battery in a separate loop, the bulbs are said to be in parallel.

What are the disadvantages of parallel circuit?

The major disadvantage of parallel circuits as compared to series circuits is that the power remains at the same voltage as the voltage of a single power source . Other disdvantages include the splits of an energy source across the entire circuit , and lower resistance .

Which is safer series or parallel?

parallel wiring is more reliable, safe and simple to use.

Is voltage the same in parallel?

A parallel circuit is constructed by connecting the terminals of all the individual load devices so that the same value of voltage appears across each component. The voltage across each branch is the same.

What is a series parallel switch?

A Series Parallel Switch is providing a Temporary "Bridge" between two indiviual battery packs. These packs can be 12V Parallel Charged, or 24V series Charged. The switch is elecrically activated, and will make a physical connection between the individual battery packs.

Why does voltage stay the same in a parallel circuit?

This is because there are only two sets of electrically common points in a parallel circuit, and the voltage measured between sets of common points must always be the same at any given time.

14 Wiring switches in parallel Images

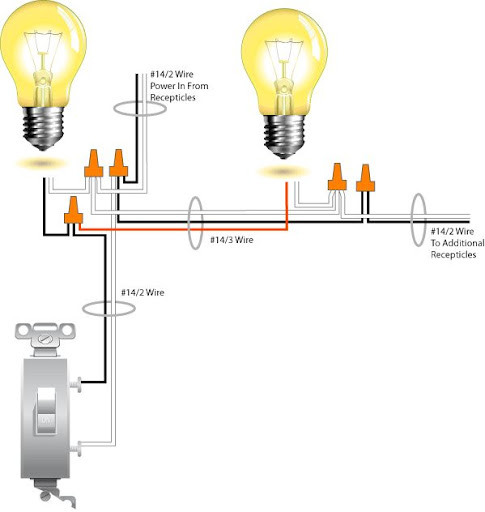

2lights1switch  Home electrical wiring Light switch wiring
